Is Your Network Performance Optimal? Leveraging Fiber Optic Cabling Expertise for Business Success

Having the right technology infrastructure is crucial for success. Bridgehead IT’s expertise in infrastructure and fiber optic cabling ensures that businesses are equipped with the necessary technology to meet their needs. One key aspect of this expertise is understanding the color codes for multimode (MM) and singlemode fiber optics, which can significantly simplify troubleshooting and maintenance.

Simplifying Fiber Optic Troubleshooting with Color Codes

When it comes to fiber optics, a preliminary visual inspection of the fiber products and their color should be the first step in any troubleshooting process. This simple visual check can quickly identify potential issues, much like checking if a car has gas before diagnosing more complex problems. Understanding the color codes for connectivity products can help technicians identify mismatched or unmated colors, which are red flags for inoperable solutions.

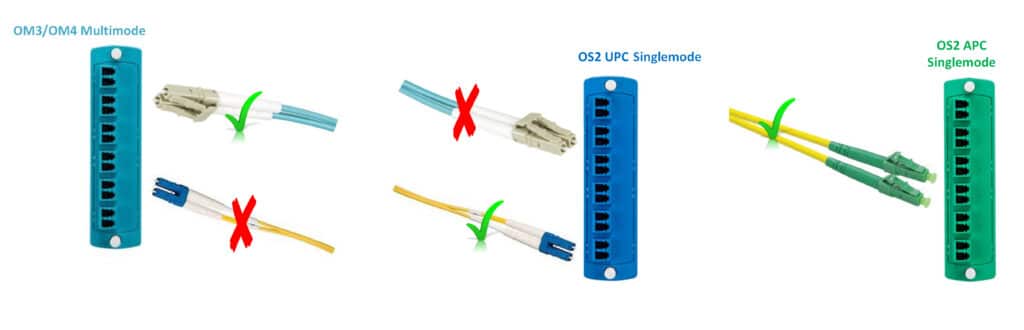

Key Color Codes for Fiber Optics

Here are the essential color codes for multimode and singlemode fiber optics that the Bridgehead IT infrastructure and cabling team uses to ensure seamless connectivity:

• OM3/OM4 Multimode Patch Cords: Always Aqua with Ivory connectors.
• OS2 UPC Singlemode Patch Cords: Always Yellow with Blue connectors.
• Specialized OS2 APC Singlemode Patch Cords: Always Yellow with Green connectors (APC is for specialized solutions, not standard).
• OM3/OM4 Multimode Fiber Bulkhead Adapters: Always Aqua.
• OS2 UPC Singlemode Fiber Bulkhead Adapters: Always Blue.
• OS2 APC Singlemode Fiber Bulkhead Adapters: Always Green (APC is for special solutions, not standard).

By adhering to these color codes, Bridgehead IT ensures that their clients’ fiber optic networks are easy to troubleshoot and maintain, reducing downtime and improving overall efficiency.

The Impact of Mistakes in Fiber Color Code Identification

Mistakes in identifying the color codes for singlemode and multimode fiber optics can lead to significant problems, including:

1. Increased Downtime: Incorrectly identifying fiber types can result in mismatched connections, leading to network failures and increased downtime as technicians work to identify and correct the issue.
2. Signal Loss and Degradation: Using the wrong type of fiber can cause signal loss and degradation, reducing the overall performance and reliability of the network.
3. Higher Maintenance Costs: Frequent troubleshooting and repairs due to color code identification errors can lead to higher maintenance costs and resource allocation.
4. Reduced Efficiency: Misidentifying fiber types can slow down the troubleshooting process, reducing the efficiency of IT operations and impacting business productivity.

Technical Details of Fiber Optic Cabling

1. Multimode Fiber (OM3/OM4):
   1. Core Diameter: Typically 50 micrometers.
   1. Wavelengths: Operates at 850 nm and 1300 nm.
   1. Bandwidth: OM3 supports up to 10 Gbps over 300 meters, while OM4 supports up to 10 Gbps over 550 meters.
   1. Applications: Ideal for short-distance data transmission, such as within data centers and enterprise networks.
2. Singlemode Fiber (OS2):
   1. Core Diameter: Typically 9 micrometers.
   1. Wavelengths: Operates at 1310 nm and 1550 nm.
   1. Bandwidth: Supports higher bandwidth over longer distances, making it suitable for long-haul and metropolitan area networks.
   1. Applications: Used for long-distance telecommunication and high-speed data transmission.
3. Connector Types:
   1. UPC (Ultra Physical Contact): Provides a low insertion loss and return loss, suitable for most standard applications.
   1. APC (Angled Physical Contact): Offers even lower return loss due to the 8-degree angled end face, ideal for high-precision applications such as in FTTH (Fiber to the Home) networks.

The Bridgehead IT Advantage

Bridgehead IT excels in infrastructure cabling, offering comprehensive solutions tailored to each business’s needs. Their expertise in fiber optic color codes and technical specifications ensures reliable technology, simplifying troubleshooting and maintenance to keep businesses connected and productive.

Ready to optimize your network performance? Contact Bridgehead IT today to learn how their advanced fiber cabling solutions can transform your business.
